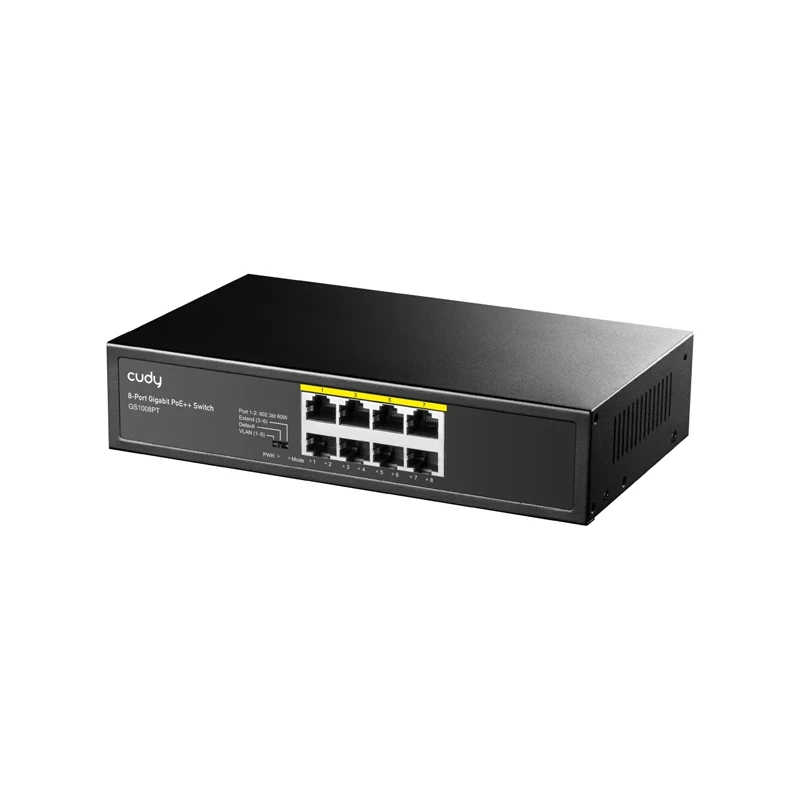

Cudy GS1008PT 8-Port Gigabit PoE+ Switch

0 Orders 0 Wish listed

Rs.12,500 Rs.11,875

Qty

Total price:

Rs.12,500

Overview
Reviews

Detail Description

120 watts PoE power supply, port #1 maximum 60 watts

● 8 10/100/1000M PoE+/PoE+ ports

● Extend mode support remote PoE feeding up to 250m

● VLAN mode isolate each PoE Ports for security

● Watchdog reactivates the abnormalPD by resuming POE power

● IEEE 802.3at / IEEE 802.3af standard compliant

● Plug&play, simple setup with no configuration needed

Model	GS1008PT
Power	Input: AC 100-240V, 50/60Hz
Ethernet	8 *10/100/1000M PoE Port
Switching Capacity	16Gbps
Throughput	11.9Mpps
Packet Buffer	1.5Mb
MAC Address	2K
Jumbo Frame	9216bytes
Transfer Mode	Store and forward
MTBF	100000 hour
Network protocol	IEEE802.3 (10Base-T)	IEEE802.3u (100Base-TX)	IEEE802.3ab (1000Base-TX)	IEEE802.3x (Flow control)
PoE Protocol	IEEE802.3af （15.4W）	IEEE802.3at （30W）	IEEE802.3at （4 Pair 60W）
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A	EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge)	Shock: IEC 60068-2-27	Free Fall: IEC 60068-2-32	Vibration: IEC 60068-2-6
Network Medium	10Base-T : Cat3、4、5 or above UTP(≤100m)	100Base-TX : Cat5 or above UTP(≤100m)	1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment	Working Temperature：-20~50°C	Storage Temperature：-40~85°C	Working Humidity ：10%~90%，non-condensing	Storage Temperature：5%~90%，non-condensing	Working Height：Maximum10,000 feet	Storage heigh：Maximum 10,000 feet
LED Indicators	PWR（power supply），Mode（DIP），1-8 Green（Link&Data）
PWR	Lighting：Powered	Un-Light：No Power
Mode	Lighting：VLAN	Un-Light：Default	Flashing：Extend
1-8 Green	Lighting：Connecting	Flashing：Data Transmit	Un-Light：Disconnect
DIP Switch	VLAN：Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable	Default: Normal mode, all port can communicate with each other, The port AI mode is closed.	Extend：Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enable
Product Dimension	200mm118mm44mm
Package Dimension	245mm190mm60mm
N.W	0.6kg
G.W	0.9kg
Packing Info	Carton MEAS：505320402mm	Packing Qty：20 units	Packing Weight：19KG
Package List	Input Voltage ：AC 100-240 V
Package List	Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
Warranty	2 Years

Cudy GS1008PT 8-Port Gigabit PoE+ Switch In Nepal!

120 W Power budget & 60 W Maximum One Port

The total PoE power supported by the PoE port is 120 W, and the maximum for port #1~#2 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Rack Mount & Wall Mount & Desktop

● Provide a variety of installation methods for easy deployment in any environment

● Support Wall mount installation

● Support Desktop installation

Plug&Play, Fanless design

Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
