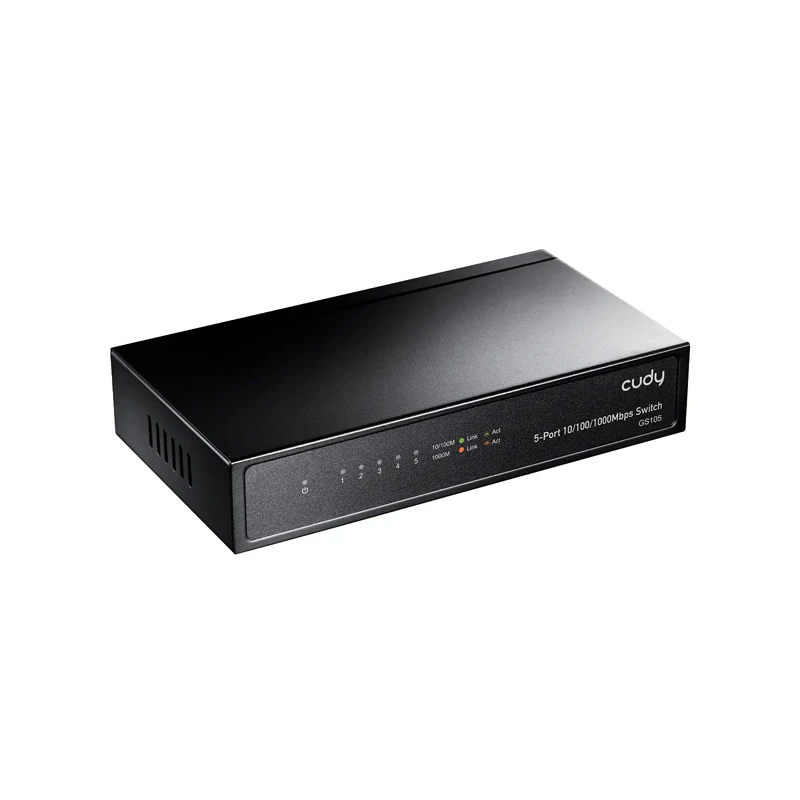

Cudy GS105 5-Port Gigabit Desktop Switch

0 Orders 0 Wish listed

Rs.3,400 Rs.3,230

Qty

Total price:

Rs.3,400

Overview
Reviews

Detail Description

● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards

● 5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware

● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering

● Store-and-Forward switching method

● Supports 16K MAC address auto-learning and auto-agin

Model	GS105
Standard configurati	5 10/100/1000M RJ-45 adaptive ports
Switching Capacity	10Gbps
Throughput	7.44Mpps
Packet Buffer	1M
MAC Address	1K
Jumbo Frame	2K
Transfer Mode	Store and forward
MTBF	100000 hour
Network protocol	IEEE802.3 (10Base-T)	IEEE802.3u (100Base-TX)	IEEE802.3ab (1000Base-TX)	IEEE802.3x (Flow control)
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A	EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)	Shock: IEC 60068-2-27	Free Fall: IEC 60068-2-32	Vibration: IEC 60068-2-6
Network Medium	10Base-T : Cat3,4,5 or above UTP(≤100m)	100Base-TX : Cat5 or above UTP(≤100m)	1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment	Working Temperature：-10~50°C	Storage Temperature：-40~70°C	Working Humidity ：10%~90%，non-condensing	Storage Temperature：5%~90%，non-condensing	Working Height：Maximum10,000 feet	Storage heigh：Maximum 10,000 feet
LED Indicators	PWR（Power indicator）、Link（Network Link）、LOOP（Loop alarm）
DIP Switch	VLAN：Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;	Default：Default mode, Support loop alarm;	Extend：Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port
Structure Size	Product Size：1007026mm	Package Size：17512063mm	Product Net-Weight：0.2kg	Product Gross-Weight：0.4kg
Packing Info	MEAS：505320400mm	Packing Qty：40 unit	Packing weight：17KG
Power Voltage	Power Input Voltage ：AC 100-240 V	Switch Input Voltage:：DC 5V
Warranty	2 Years

Cudy GS105 5-Port Gigabit Desktop Switch

Gigabit Ports for Faster Speed

Increase the speed of your network with the 5-port Gigabit switch. Non-blocking, 5 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.

High Performance

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.
