1. High quality imaging with 2 MP resolution
2. Support Human and Vehicle Detection
3. Smart Hybrid Light: advanced technology with long range
4. Built-in microphone for real-time audio security
5. Water and dust resistant (IP67)
6. Efficient H.265+ compression technology
7. Support on-board storage up to 512 GB (SD card slot) (Optional

Camera

1. Image Sensor1/2.9" Progressive Scan CMOS
2. Max. Resolution1920 × 1080
3. Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
4. Shutter Time1/3 s to 1/100,000 s
5. Day & NightIR cut filter
6. Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
7.

8. Lens
9. Lens TypeFixed focal lens, 2.8 and 4 mm optional
10. Focal Length & FOV
11. 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
12. 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
13. Lens MountM12
14. Iris TypeFixed
15. ApertureF1.6
16.

17. DORI
18. DORI
19. 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
20. 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
21.

22. Illuminator
23. Supplement Light TypeIR,White Light
24. Supplement Light RangeUp to 30 m
25. Smart Supplement LightYes
26. IR Wavelength850 nm
27.

28. Video
29. Main Stream
30. 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
31. 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
32. Sub-Stream
33. 50 Hz: 25 fps (640 × 480, 640 × 360)
34. 60 Hz: 30 fps (640 × 480, 640 × 360)
35. Video Compression
36. Main stream: H.265+/H.265/H.264+/H.264,
37. Sub-stream: H.265/H.264/MJPEG
38. Video Bit Rate32 Kbps to 8 Mbps
39. H.264 TypeBaseline Profile,Main Profile,High Profile
40. H.265 TypeMain Profile
41. Bit Rate ControlCBR,VBR
42. Region Of Interest (ROI)1 fixed region for main stream
43.

44. Audio
45. Audio TypeMono sound
46. Environment Noise FilteringYes
47. Audio Sampling Rate8 kHz/16 kHz
48. Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
49. Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
50.

51. Network
52. SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
53. Simultaneous Live ViewUp to 6 channels
54. APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
55. ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
56. User/Host
57. Up to 32 users
58. 3 user levels: administrator, operator, and user
59. ClientiVMS-4200,Hik-Connect
60. Web Browser
61. Plug-in required live view: IE 10, IE 11,
62. Local service: Chrome 57.0+, Firefox 52.0+
63.

64. Image
65. Wide Dynamic Range (WDR)Digital WDR
66. SNR≥ 52 dB
67. Day/Night SwitchDay,Night,Auto,Schedule
68. Image EnhancementBLC,HLC,3D DNR
69. Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
70. Privacy Mask4 programmable polygon privacy masks
71.

72. Interface
73. Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
74. On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
75. Built-In MicrophoneYes
76. Reset Key-F: Yes
77. Event
78. Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
79. LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
80.

81. General
82. Power
83. 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
84. PoE: IEEE 802.3af, Class 3, max: 6.5 W
85. MaterialMetal & Plastic
86. Dimension170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
87. Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
88. WeightApprox. 265 g (0.6 lb.)
89. With Package WeightApprox. 495 g (1.1 lb.)
90. Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
91. Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
92. LanguageEnglish, Ukrainian
93. General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
94. Approval
95. EMC
96. FCC: 47 CFR Part 15, Subpart B,
97. CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
98. RCM: AS/NZS CISPR 32: 2015,
99. IC: ICES-003: Issue 7
100. Safety
101. UL: UL 62368-1,
102. CB: IEC 62368-1: 2014+A11,
103. CE-LVD: EN 62368-1: 2014/A11: 2017,
104. BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
105. Environment
106. CE-RoHS: 2011/65/EU,
107. WEEE: 2012/19/EU,
108. Reach: Regulation (EC) No 1907/2006
109. ProtectionIP67: IEC 60529-2013

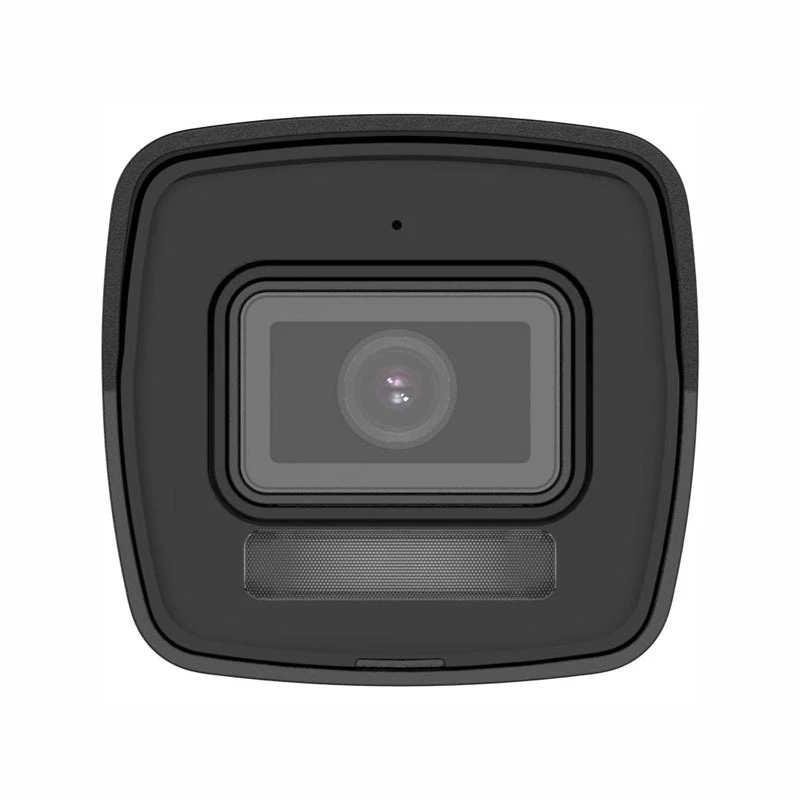

Hikvision 2 MP Smart Hybrid Light Fixed Bullet Network Camera DS-2CD1023G2-LIU

1. High quality imaging with 2 MP resolution
2. Support Human and Vehicle Detection
3. Smart Hybrid Light: advanced technology with long range
4. Built-in microphone for real-time audio security
5. Water and dust resistant (IP67)
6. Efficient H.265+ compression technology
7. Support on-board storage up to 512 GB (SD card slot) (Optional)
